Xantrex - 1000w Freedom Inverter

Design

True sine wave 120 Vac inverter with a built-in transfer switch. Designed for recreational and commercial applications.

- Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
- True Sine Wave AC Power: For the operation of sensitive and motor loads
- Ignition Control: Feature to turn the inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
- Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
- Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode

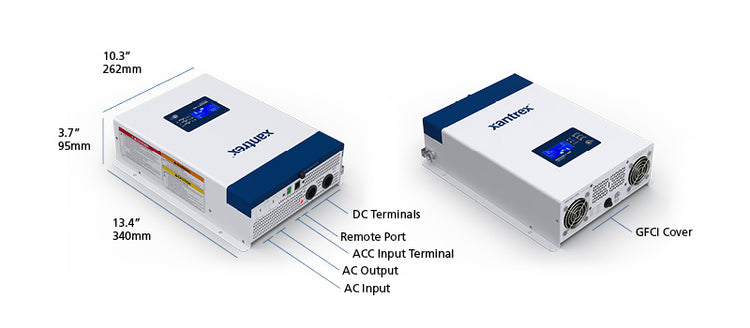

- Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

Features:

• Output Voltage: 120 Volt AC
• Input Voltage: 12 Volt DC
• Continuous Output Power (W): 1000 Watt
• Peak Output Power (W): 2000 Watt
• Ampere Rating: 8.4 Amp
• Efficiency: 91 Percent
• Length (IN): 14.2 Inch
• Width (IN): 10.6 Inch
• Height (IN): 3.7 Inch
• Remote On/Off Capable: Yes
