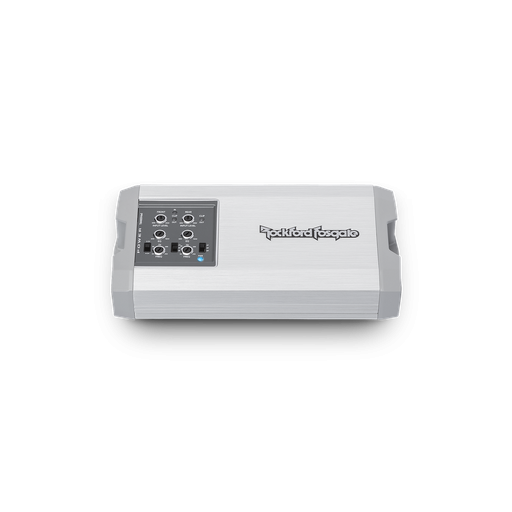

Rockford Fosgate Power Series 400a, 5ch


Product Detail

The TM400X4ad is a 400 Watt 4-channel amplifier with high-efficiency Class-ad technology and a conformal coated pc board designed for motorsport and marine applications.

Number of Channels: 4
Total Power (Sum of Rated Power): 400 Watts
Frequency Response: 20Hz-20kHz +/-1dB
Input Sensitivity: 150 mV to 12 V
Circuit Topology Class: Class AD
Efficiency (average): >75%
Power Wire Gauge: 8 AWG
Power Input Connector: Detachable Compression Terminal
Speaker Wire Gauge: 16 AWG
Speaker Output Connector: Front: 4-Pin Harness, Rear: 4-Pin Harness
Cooling: Dual Fan Cooled
Operating Voltage: 9 - 16 VDC
Recommended Fuse (not included): 60 A
Max. Current Draw (13.8V Sinewave): 55 A
Dimensions (H x W x D): 1.6 x 4.3 x 8.3 (in.), 4.1 x 10.8 x 21.1 (cm)
Shipping Weight: 3.4 Lbs. (1.54 Kg.)

- Rockford Fosgate proprietary Class AD technology
- Differential inputs with high-level auto turn-on feature
- Remote-Out feature when using high-level inputs
- 8 AWG power/ground connectors w/ upgraded RCA connectors
- 2/4 channel input switch
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Mounted controls
- Dual fan cooled
- Thermal sensing
- Dual heat sinks
- Discrete surface mount technology
- Marine-grade two-part epoxy coating on circuit boards

2 Year Warranty
