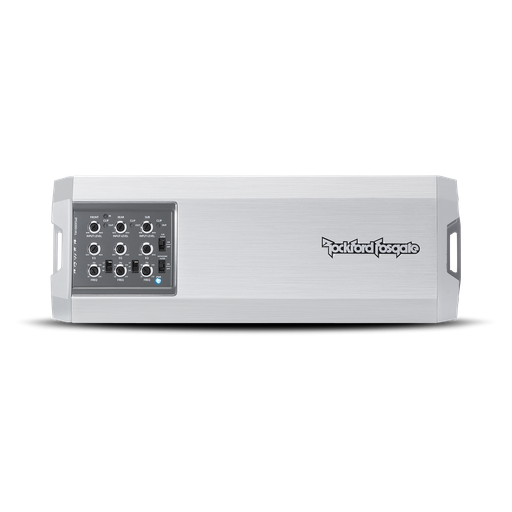

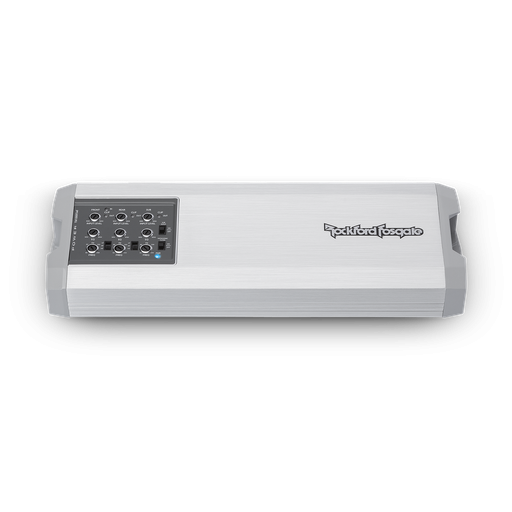

Rockford Fosgate Power Series 1000a, 5ch


Product Detail

The Power Marine TM1000x5ad is a compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, a CLEAN circuit with input/output clip detection, mounted controls, and dual fan forced induction cooling. Additionally, it has a patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it useful for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.

Number of Channels: 5
Total Power (Sum of Rated Power): 1000 Watts
Frequency Response: 20Hz - 20kHz
Input Sensitivity: 150 mV to 12 V
Circuit Topology Class: Class AD + Class BD (Sub)
Efficiency (average): >85%
Signal Input: Front High/Low Input: 4-Pin harness, Rear High/Low Input: 4-Pin harness, Input Switch: 2CH/4CH, (2CH: sub-signal derived from Front Left input)
Dimensions: (H x W x D)1.6 x 4.3 x 12 (in.) - 4.1 x 10.8 x 30.5 (cm)
Shipping Weight: 5 Lbs. (2.27 Kg.)

- Rockford Fosgate proprietary Class AD technology
- Class bd Technology
- Differential inputs with high-level auto turn-on feature
- AP remote out feature when using high-level inputs
- 2013 PLC2 remote ready
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Top-mounted controls
- Dual fan cooled
- Thermal sensing
- Dual heat sinks
- Other Rockford protection schemes
- CEA-2006 and CE Compliant
- Discrete surface mount technology
- Marine-grade two-part epoxy coating on circuit boards

2-Year Warranty
