Rockford Fosgate Marine Digital 2.7'' color


Product Detail

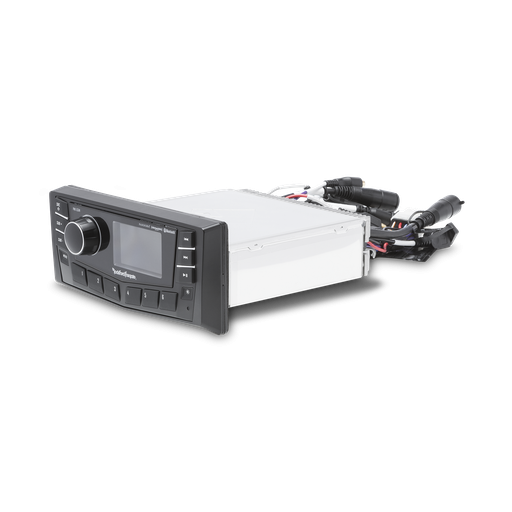

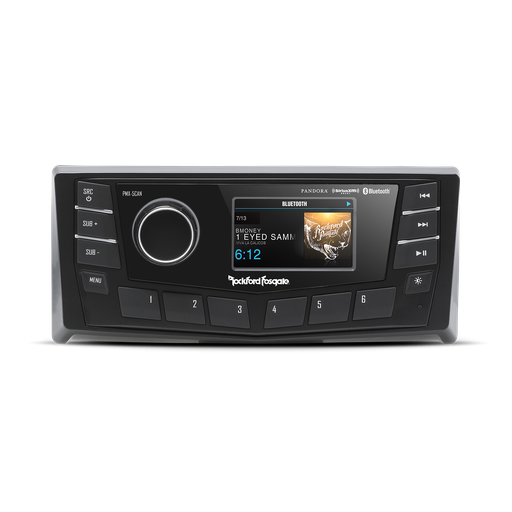

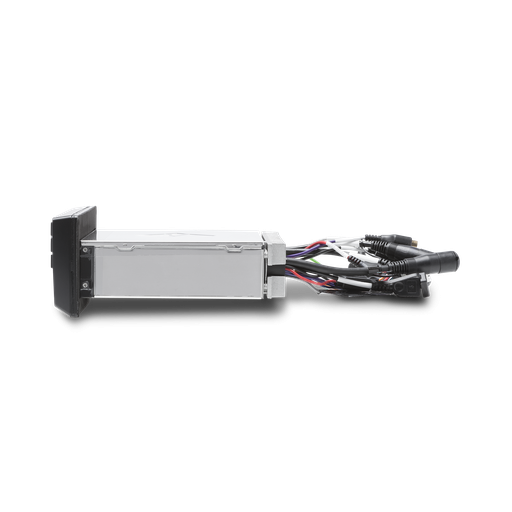

The PMX-5CAN is an AM/FM/WB tuner and digital media receiver with a 2.7" full-color display with CAN bus functionality. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN.

FM TUNER Frequency Range: 87.9-107.9 MHz
FM TUNER Sensitivity: 8 dB
AM TUNER Usable Sensitivity: 40 dB
RCA Output Voltage: 4V
Operating Voltage: 10.5 V - 16 V
Fuse Rating: 15 A
MEDIA PLAYER Audio Format Compatibility: MP3, WMA
USB Charging (Yes/No): Yes
Frequency Response: 20 Hz - 20 kHz
Apple®/Android&trade Compatible (Yes/No): Yes
AM TUNER Frequency Range: 530 kHz - 1710 kHz
Display Size: 2.7" Color TFT
Bluetooth® (Yes/No): Yes - 3.0+EDR, A2DP 1.3
USB Version: 2.0
Steering Wheel Control Ready (Yes/No): Yes

- ISO8846/SAE J1171 Ignition Protection Certified
- Stainless Steel Rear Chassis
- Steering Wheel Control Interface Compatible
- Pandora Internet Radio
- A2DP and AVRCP Bluetooth Wireless Streaming
- FCC, CE, IC, and C-Tick Certified
- Multi-Region Radio Frequencies
- Low Voltage Warning Alert
- AUX and USB Inputs with USB Charging
- On-Board Punch EQ Control
- Subwoofer Level Control
- IPX6 Marine Grade
- 7-Band Graphic EQ
- 2.7" full-color display w/ auto-dimming backlighting
- Zone Control: 2 Zone / 2 Source (F/R/S + F)
- AM / FM / WB Tuner
- CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
*- Antenna not included

2 Year Warranty
