Cobra

Curt Q Series 20k (head, legs & roller)

C9316536

Regular price
$1,576.85
Regular price
Sale price
$1,576.85

Product Detail

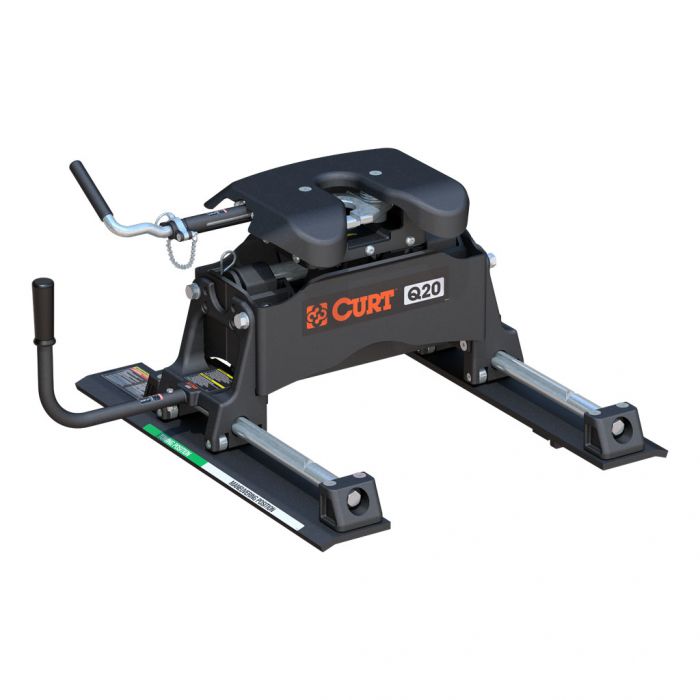

Like the other 5th wheel hitches of the CURT Q-Series, the CURT Q20 is a specialist in its class. It features a gross trailer weight capacity of 20,000 lbs. and can accept a vertical load limit of 5,000 lbs., giving it the capability to tow most large recreational vehicles, campers and many other 5th wheel trailers. Also like the Q24, the Q20 5th wheel has a hitch head, pivoting on a spherical axial bearing. This ensures smooth, quiet towing and allows unimpeded head movement and a wide turning radius for your trailer. The self-aligning head and dual-locking makes coupling easier, and with the three position coupling mechanism, indicating when it safe to couple and when it is safe to tow, you can be out of the driveway and on your way quick.


Specifications

Gross Trailer Weight(GTW): 20,000 LB
Shipping Weight: 204.600
Product Weight: 0.000
hub_usa: D20
Side Application Type Description: Blank
Material: Blank
UPC: 612314165360
Part Type: 5th Wheel Hitch
Mount Type Description: Blank
Vertical Load: 5,000 LB
Height: 17-1/2 IN - 21-1/2 IN
Finish: CARBIDE BLACK POWDER COAT

Features

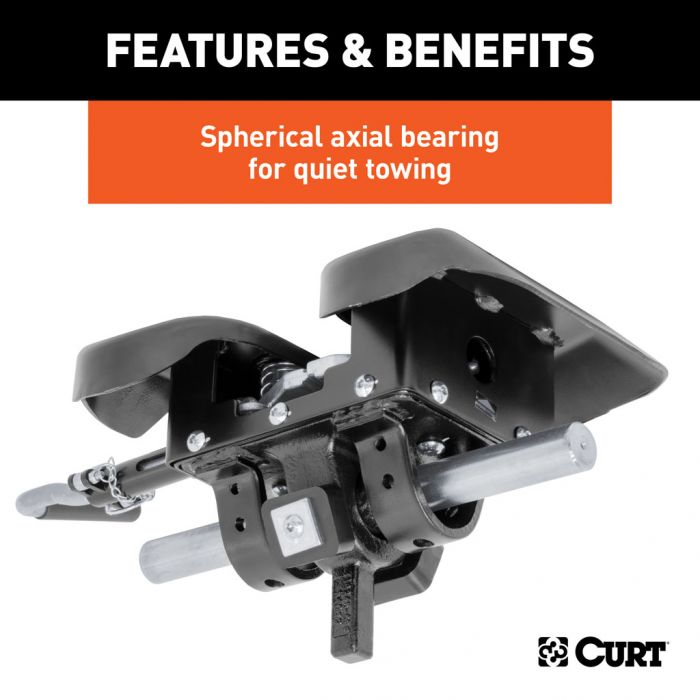

- Spherical axial bearing tilts in any direction for a smooth, quiet ride
- Wide, self-aligning head helps eliminate errors when backing up to the trailer

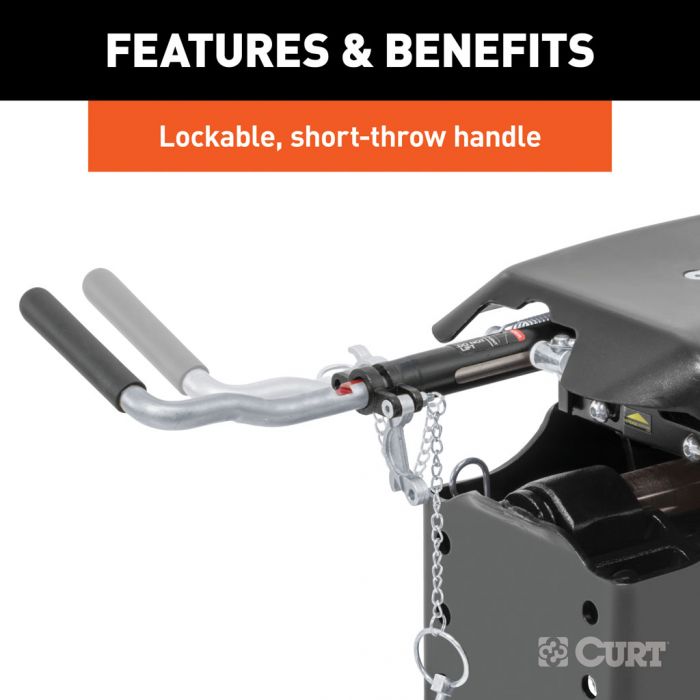

- Lockable, short-throw handle automatically engages with the kingpin
- Three easy-access grease fittings for lubrication
- Three position coupling indicator clearly shows coupling progress
- R20 5th wheel roller #16550 provides 12" of travel in the truck bed
- Rolls on wheels and solid, non-binding rods
- Mounts to all industry-standard base rails
- Offers three height adjustment positions to adapt to each special truck bed
- Includes a lube plate to eliminate messy grease deposits
- Tested for safety in accordance with SAE J2638
- Protected by a highly durable carbide powder coat finish

Warranty



Limited lifetime warranty (one year finish, one year parts)
