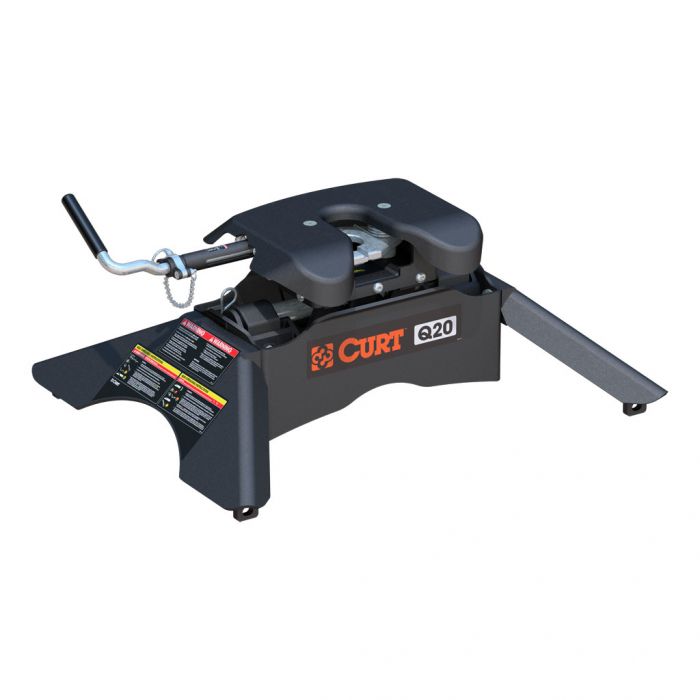

Curt Q Series 20k (head & legs)


Regular price
Regular price
Sale price

Product Detail

Like the other 5th wheel hitches of the CURT Q-Series, the CURT Q20 is a specialist in its class. It features a gross trailer weight capacity of 20,000 lbs. and can accept a vertical load limit of 5,000 lbs., giving it the capability to tow most large recreational vehicles, campers and many other 5th wheel trailers. Also like the Q24, the Q20 5th wheel has a hitch head, pivoting on a spherical axial bearing. This ensures smooth, quiet towing and allows unimpeded head movement and a wide turning radius for your trailer. The self-aligning head and dual-locking makes coupling easier, and with the three position coupling mechanism, indicating when it safe to couple and when it is safe to tow, you can be out of the driveway and on your way quick.

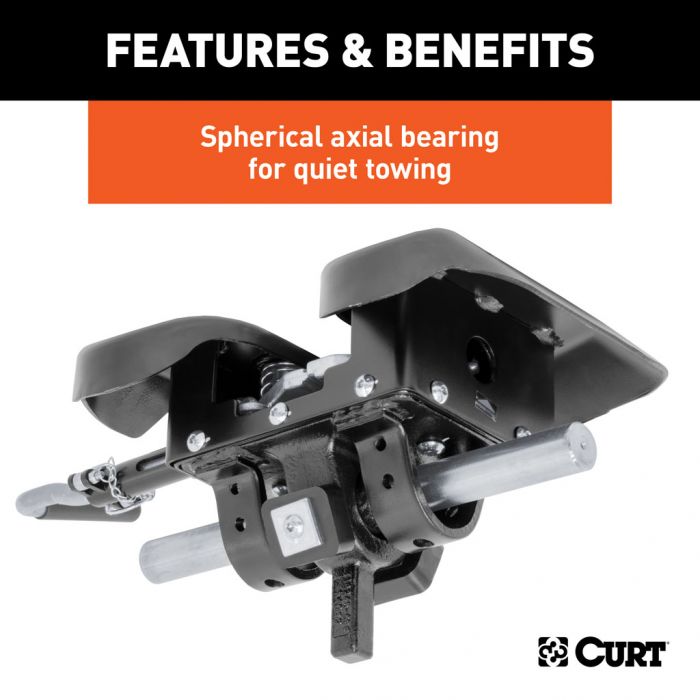

- Spherical axial bearing tilts in any direction for a smooth, quiet ride
- Wide, self-aligning head helps eliminate errors when backing up to the trailer

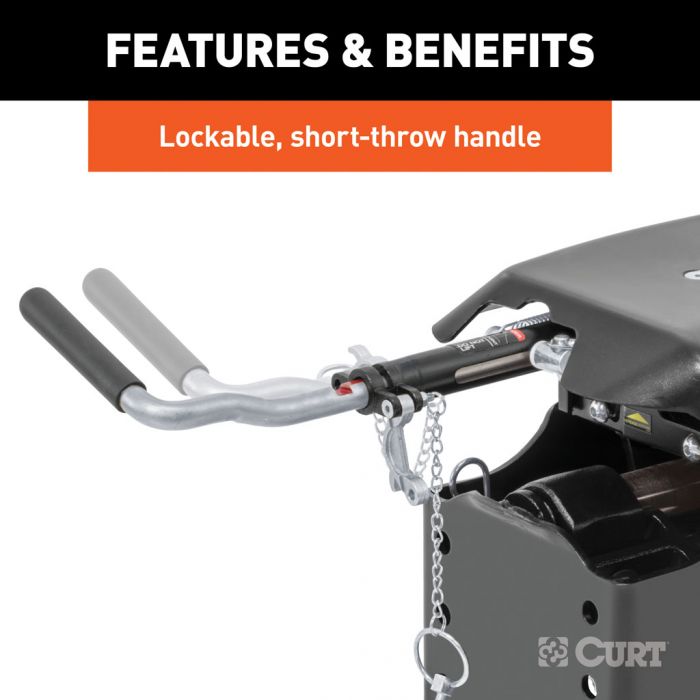

- Lockable, short-throw handle automatically engages with the kingpin
- Three easy-access grease fittings for lubrication
- Three position coupling indicator clearly shows coupling progress
- Mounts to all industry-standard base rails
- Offers three height adjustment positions to adapt to each special truck bed
- Includes a lube plate to eliminate messy grease deposits
- Tested for safety in accordance with SAE J2638
- Protected by a highly durable carbide powder coat finish


- Vertically Adjusts From 14-1/2 Inch To 18 Inch
- 16,000 Pounds Towing Capacity And 4,000 Pounds Pin Weight Capacity
- Cushion Handle Grips



Limited lifetime warranty (one year finish, one year parts)
