Curt Pintle Mount 7''

Product Detail

In agriculture, construction, even military applications, pintle hitches are used for specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer.

Specifications

Material: Blank
Shipping Weight: 14.130
Side Application Type Description: Blank
Mount Type Description: Blank
Part Type: Adjustable Pintle Mount
hub_usa: D20
Gross Trailer Weight(GTW): 10,000 LB
Plate Height: 7
Shank Length: 8-1/2 IN
Maximum Drop: 6-1/2 IN
Maximum Rise: 1/2 IN
Receiver Tube Size: 2 IN
Finish: CARBIDE BLACK POWDER COAT
UPC: 612314523009

Features

- Fits trailer hitches with a 2" x 2" receiver tube opening

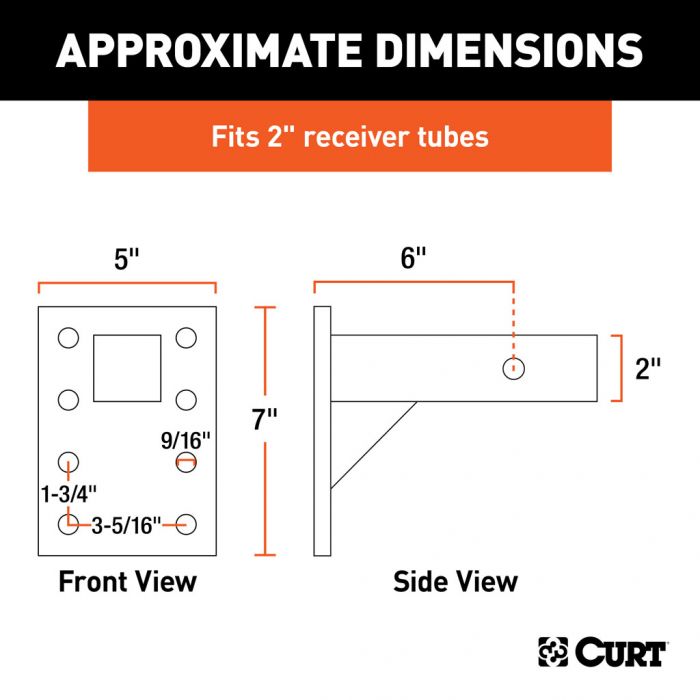

- Face plate holes spaced apart 1-3/4" high x 3-5/16" wide
- Shank constructed from solid steel for optimum strength
- Protected by a highly durable carbide powder coat finish
